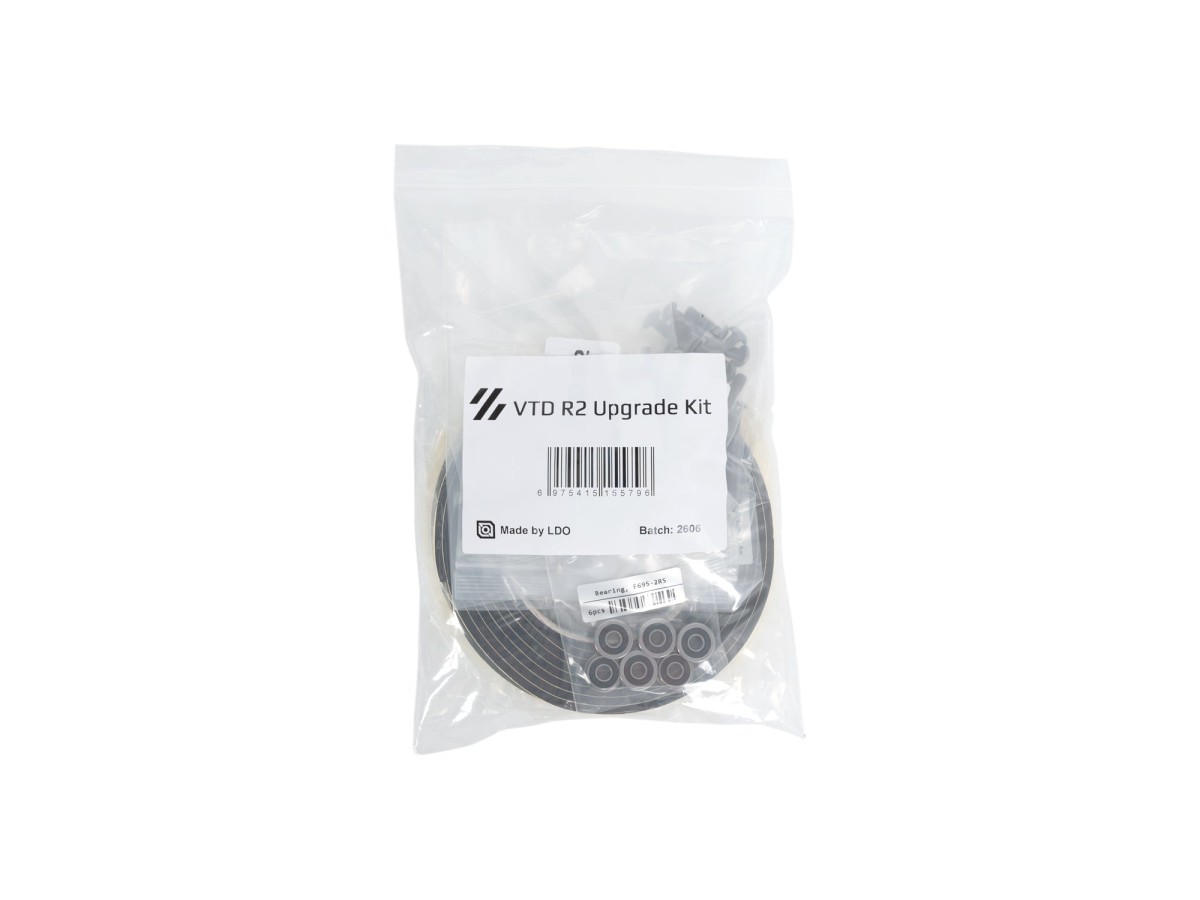

LDO Voron Trident R2 Upgrade Kit

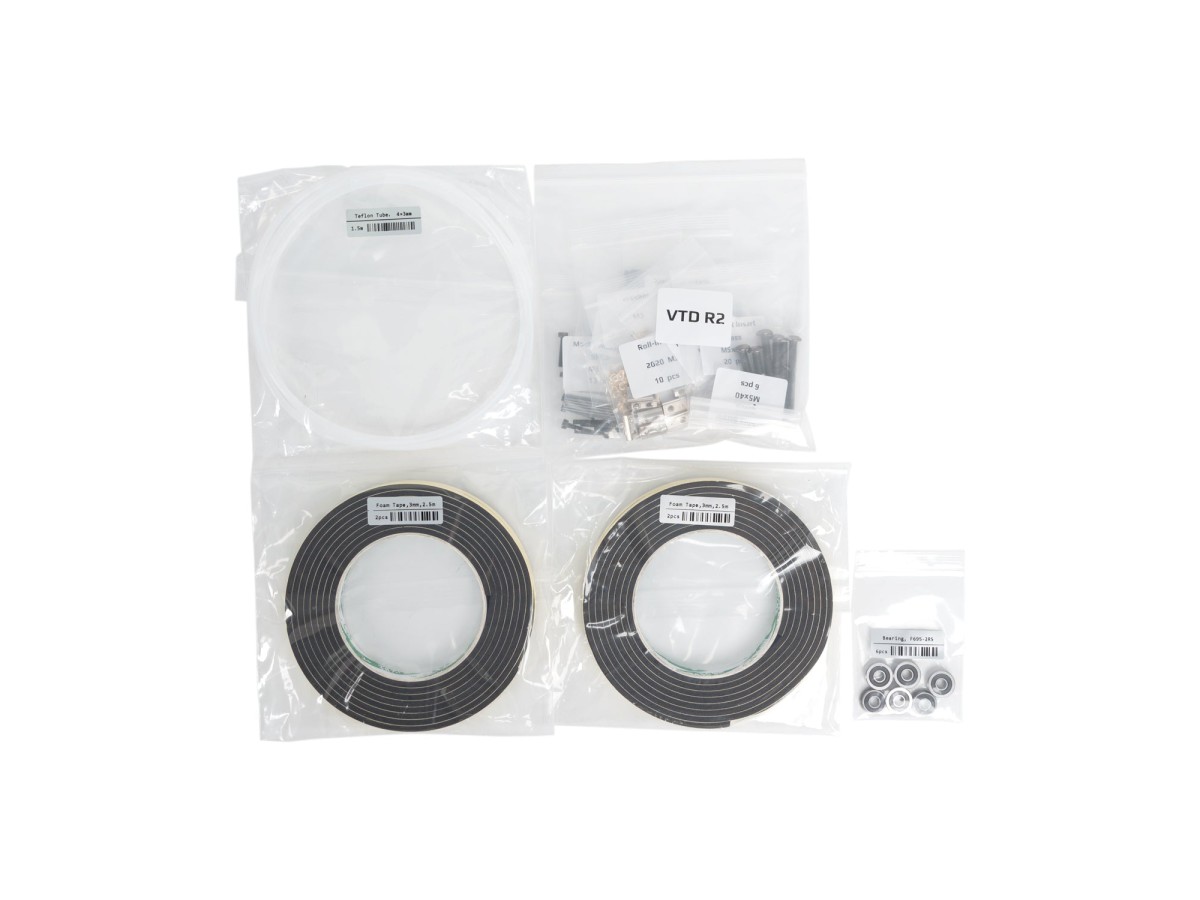

The LDO Voron Trident R2 Upgrade Kit collects the additional mechanical parts required to bring an existing LDO Trident kit up to the official Voron Trident R2 configuration. It follows LDO BOM RevA and includes fasteners, nuts, heat-set inserts, bearings, shims, PTFE tube and foam tape.

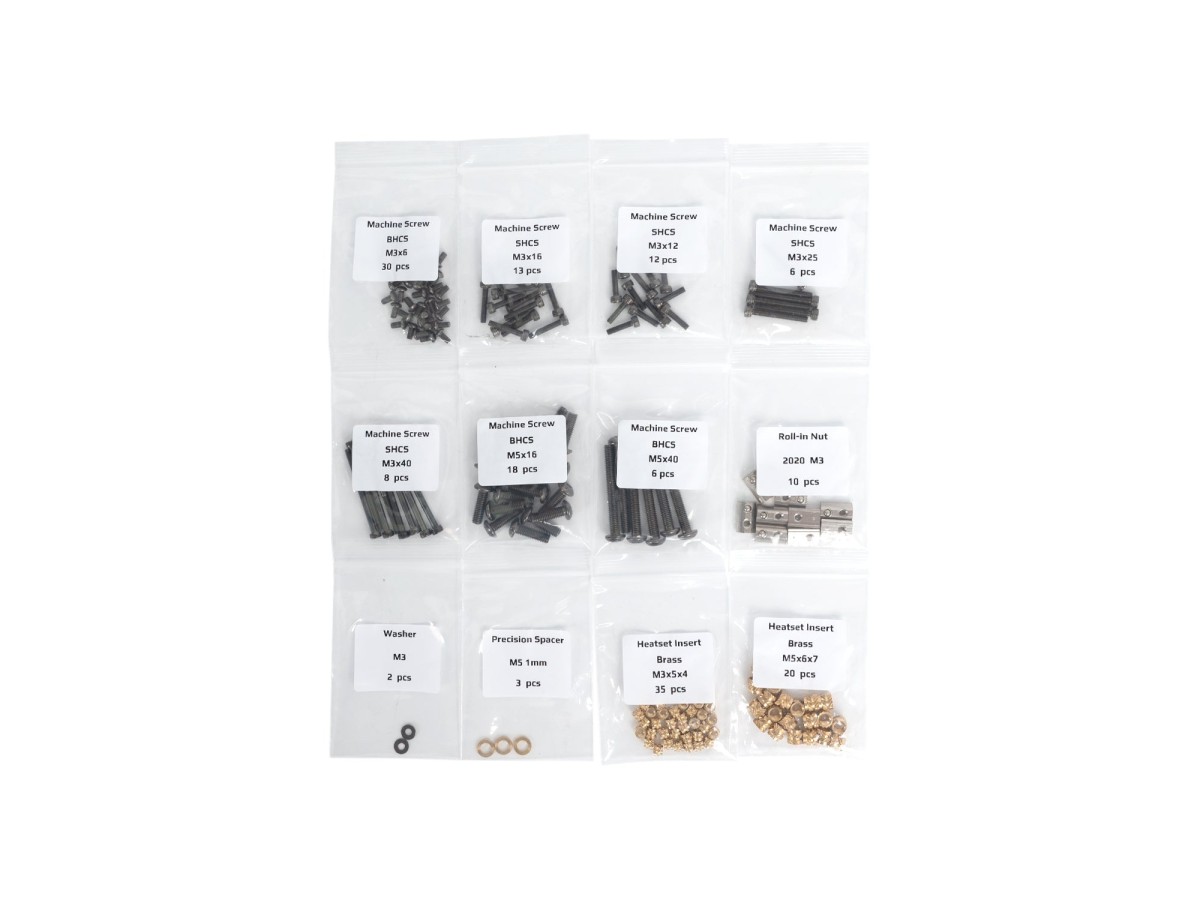

Contents

• 30 × M3×6 BHCS, 18 × M5×16 BHCS and 6 × M5×40 BHCS
• 12 × M3×12 SHCS, 13 × M3×16 SHCS, 6 × M3×25 SHCS and 8 × M3×40 SHCS
• 2 × M3 washers and 3 × 1mm M5 brass shims
• 10 × M3 roll-in nuts for 2020 extrusions
• 35 × M3×5×4 and 20 × M5×6×7 heat-set inserts
• 6 × F695-2RS ABEC-7 bearings
• 4 pieces of 3mm foam tape
• 1.5m of 4 × 3mm PTFE tube

Important

This is a mechanical upgrade kit for existing LDO Voron Trident kits. Printed parts and other printer components are not included. Check the official R2 documentation and BOM before rebuilding.

Voron Trident R2 release and documentation
