LDO Monolith CNC Gantry Kit for Voron 2.4 (V2)

Complete LDO CNC gantry kit for Monolith R1 on the Voron 2.4. Model-specific V2 version for 250, 300 and 350mm builds Supports both 2WD and AWD Black-anodised CNC-machined aluminium parts Genuine Gates 20T pulleys,… Read more Show less

Complete LDO CNC gantry kit for Monolith R1 on the Voron 2.4.

  • Model-specific V2 version for 250, 300 and 350mm builds
  • Supports both 2WD and AWD
  • Black-anodised CNC-machined aluminium parts
  • Genuine Gates 20T pulleys, bearings, shafts and mounting hardware
  • For 9mm GT2 belt – belts, motors and printed parts are not included

Manual, BOM and printable files on GitHub

In stock
kr1,600.00

kr1,600.00 tax excluded

Price: kr1,600.00

In stock

Notify me when in stock

Drop your email and we'll let you know the moment it's back.



The LDO Monolith CNC Gantry Kit for Voron 2.4 is the model-specific V2 kit for Monolith Gantry R1. It replaces key parts of the printer's XY motion system with precision-machined, black-anodised aluminium components and a 9mm GT2 system. The kit can be built as either 2WD or AWD, allowing the same package to support a conventional setup or a full four-motor CoreXY drive.

Key features

  • Specifically for Voron 2.4 – V2 and Trident CNC parts are not interchangeable
  • For standard 250, 300 and 350mm builds
  • Supports 2WD and AWD plus No Protrusion and Full Travel layouts
  • 9mm GT2/2GT belt path designed for a short, stiff drive system
  • Y carriages for MGN9H linear rails
  • Double-shear motor support and live-shaft idlers
  • Removable rear tensioners simplify belting and pre-tensioning

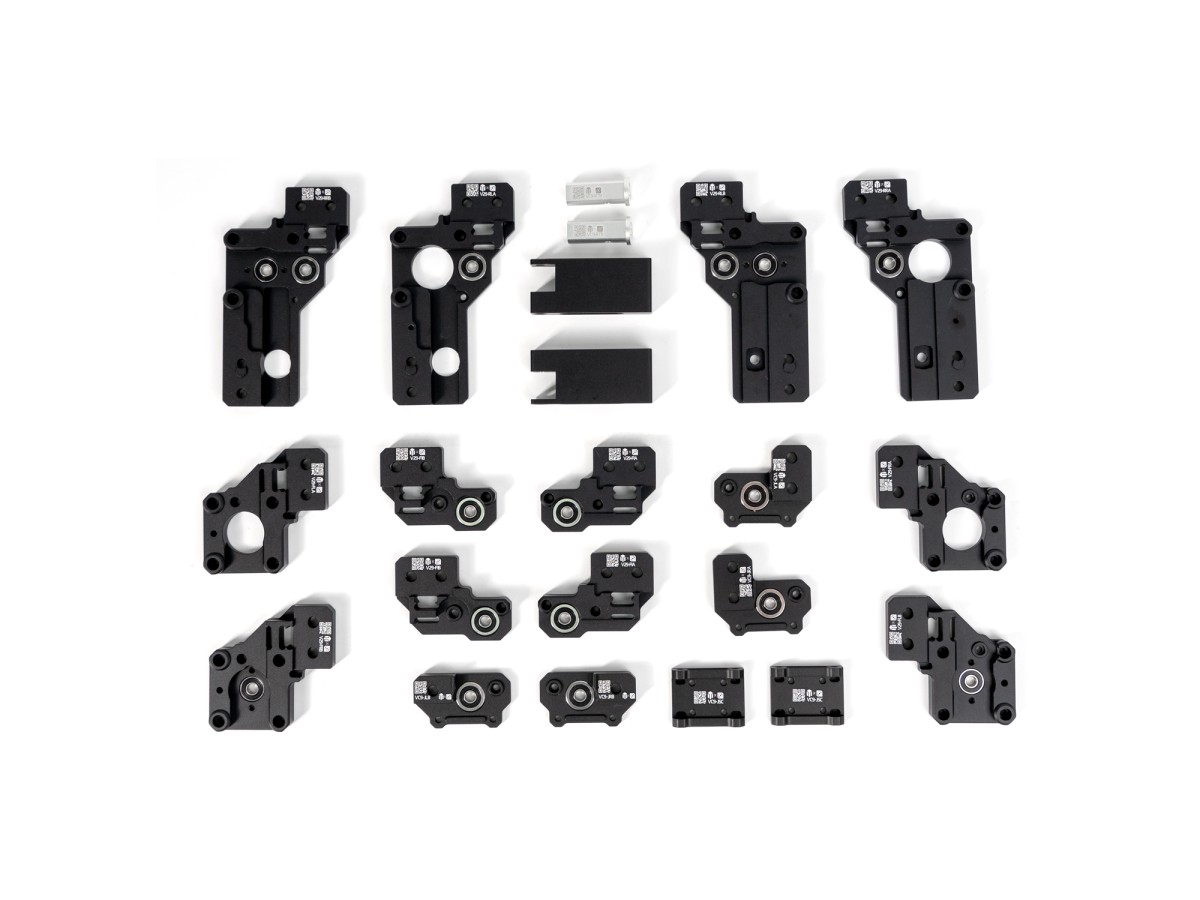

Included in the kit

  • V2-specific CNC front motor mounts for AWD and CNC front idlers for 2WD
  • CNC rear motor mounts, XY joints and removable belt tensioners

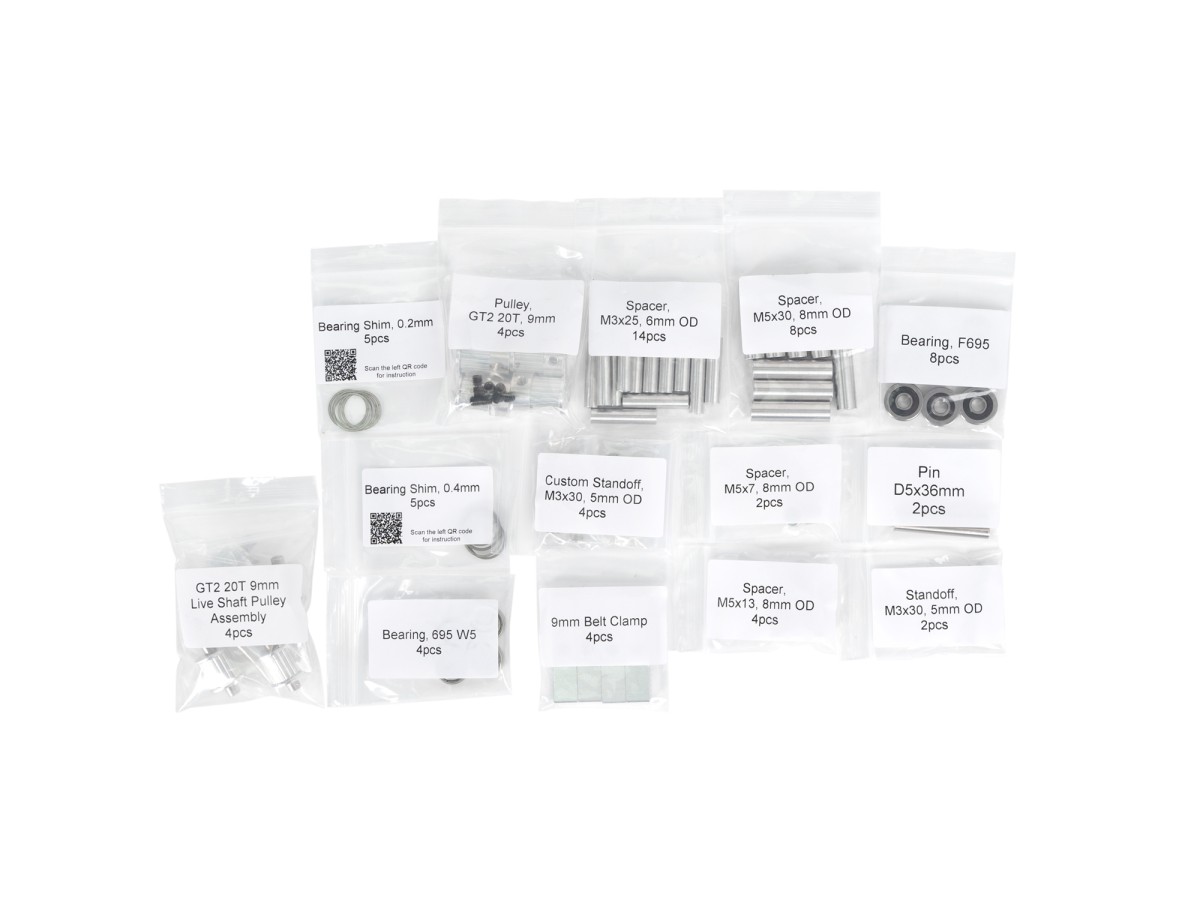

  • 4 × genuine Gates GT2 20T pulleys for 9mm belt and 5mm shaft
  • 4 × custom live-shaft pulley assemblies
  • 28 × F695-2RS flanged bearings and 6 × 695 W5 bearings

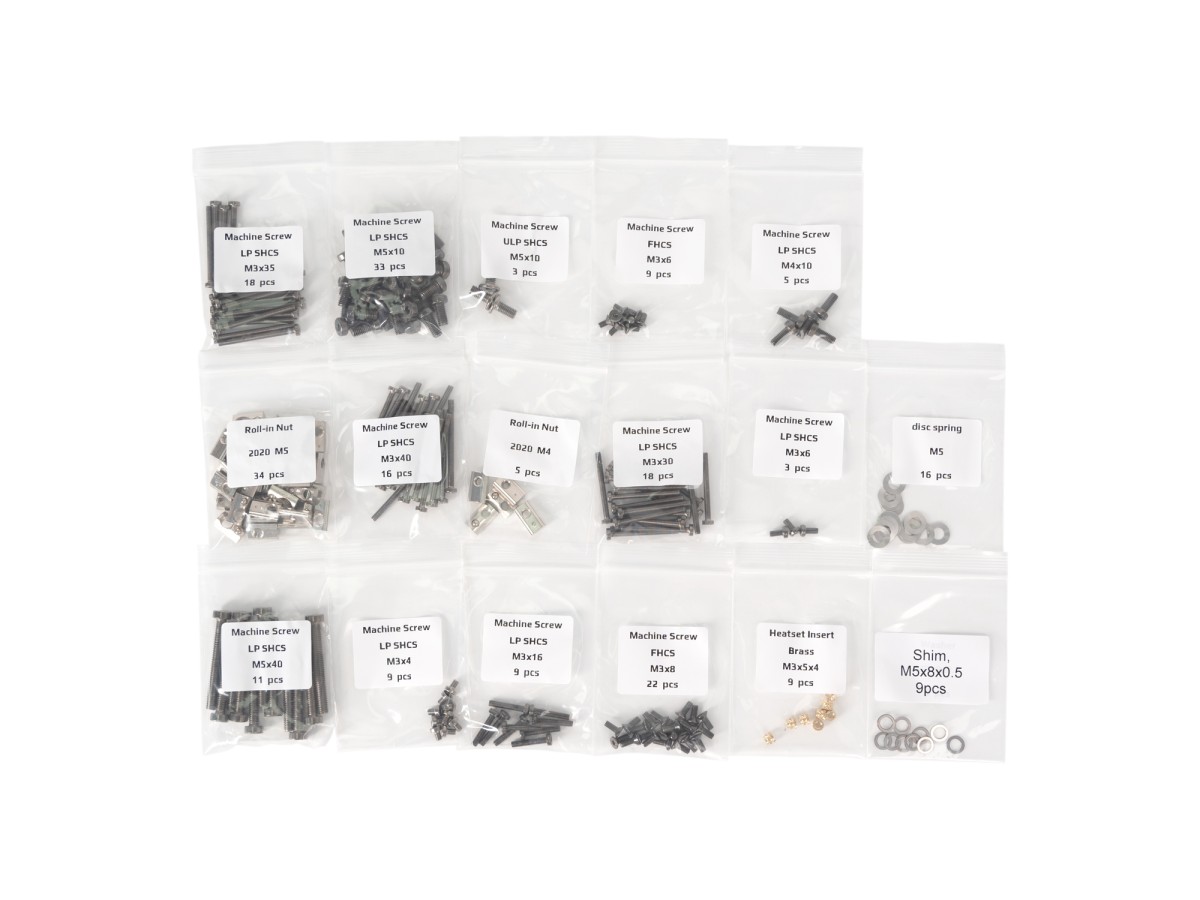

  • 5mm shafts, spacers, shims, fasteners and supporting installation hardware
  • V2-specific Z-belt clamps and related hardware

Not included

  • XY belts
  • Stepper motors
  • Printed parts or printed assembly tools
  • Toolhead, probe, linear rails, electronics, wiring or firmware changes

Check before ordering

Monolith uses a different, flipped belt path compared with a standard Voron. The toolhead, X carriage and belt clips must therefore support the Monolith belt path. Full double-shear motor support requires NEMA 17 motors with a 5mm shaft at least 37mm long; LDO's 45mm S45R motor is the recommended option. Depending on the selected layout, a Voron 2.4 may also require changes to the Z chain, umbilical or Z-belt path. AWD should only be used with a sufficiently rigid frame and suitable toolhead, electronics and wiring.

LDO Monolith kit manual and printable files on GitHub · Monolith Gantry project
