3DO Nozzle Camera Kit V2.5 – Sony 4K for 3D Printers - Pre-order

3DO Nozzle Camera Kit V2.5 – Sony 4K for 3D Printers brings detailed close-up views of your prints with improved image processing, 3D denoise, and up to 30 fps at 4K, 60 fps at 1080p, or 90 fps at 720p and below.

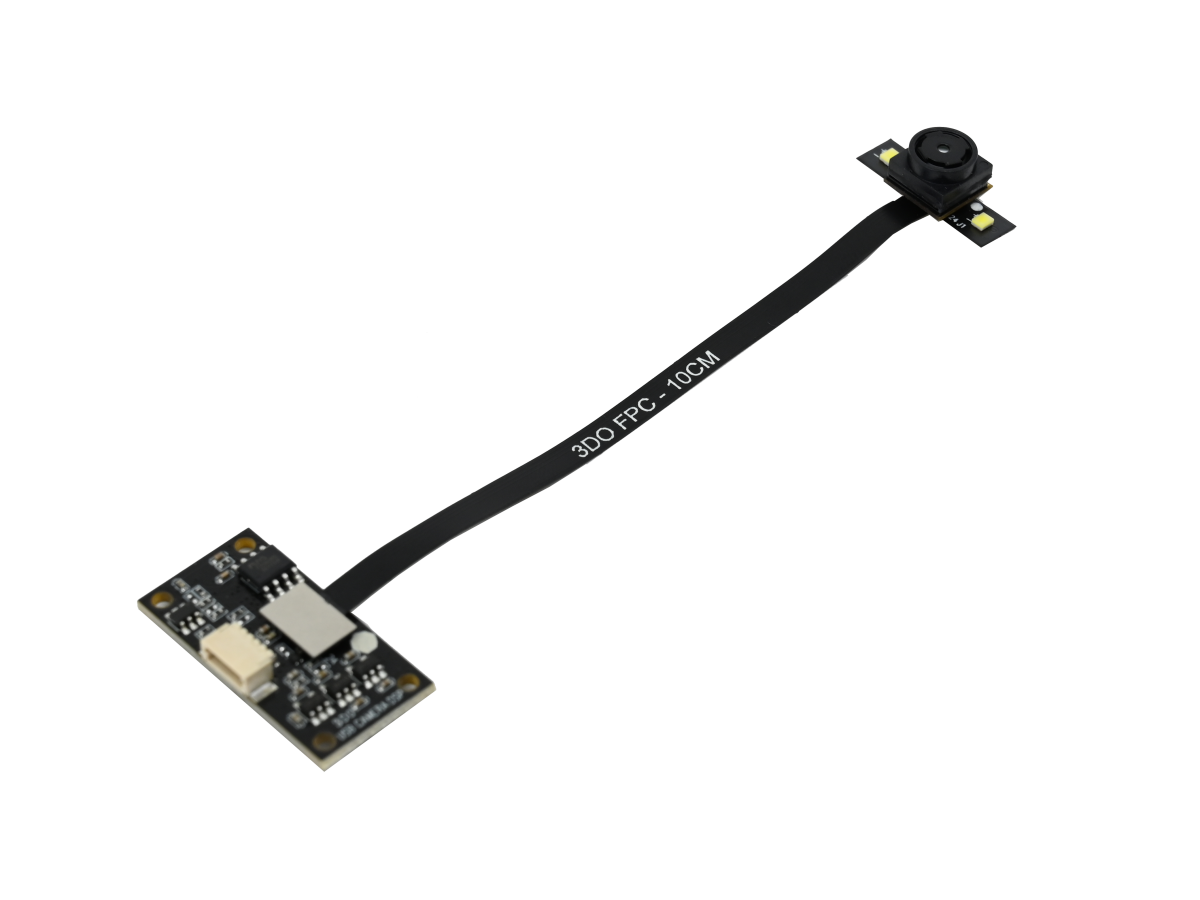

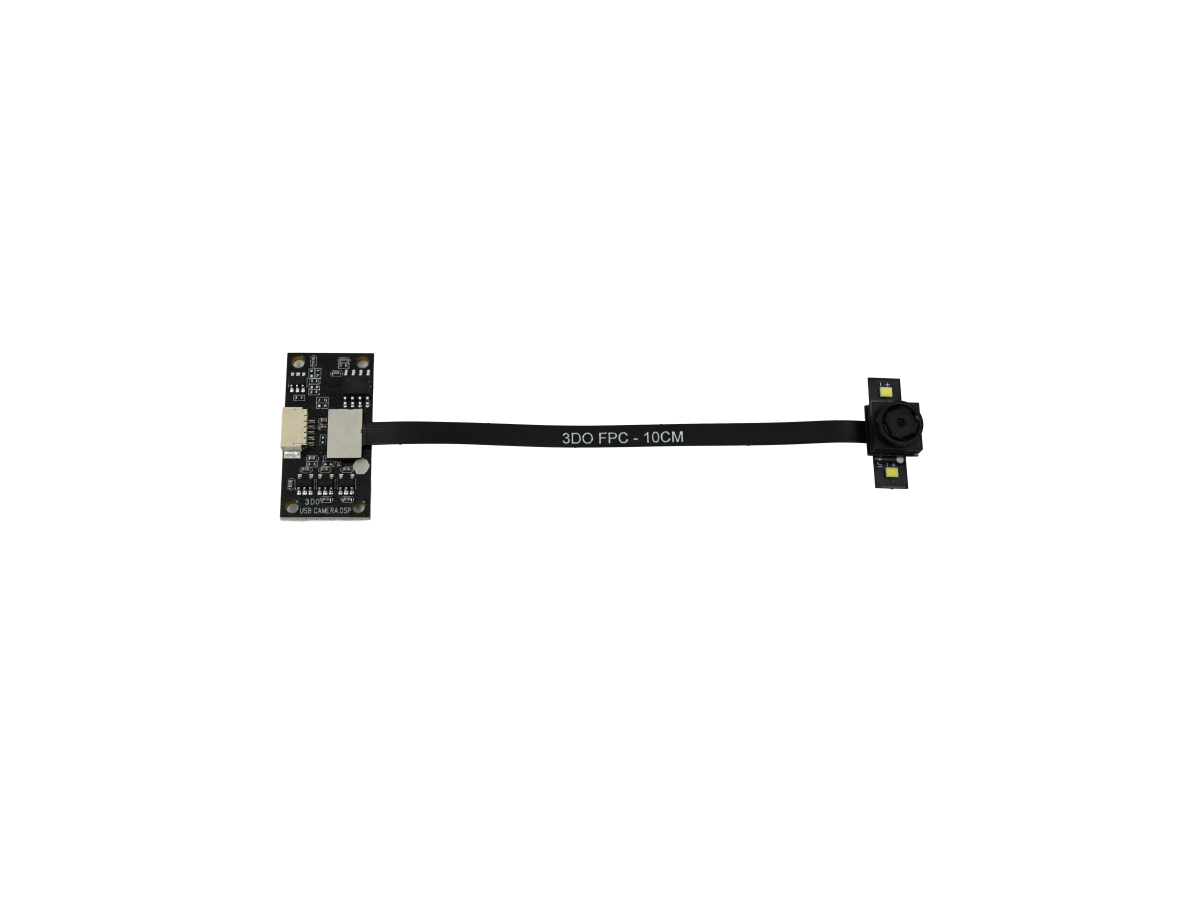

The new FPC cable is half the width of the V2 version and features high-CRI LEDs for improved color rendering. Choose between 5 cm, 10 cm, and 25 cm cable lengths. If you prefer a setup without LEDs, simply cut them off with scissors along the white line marked on the PCB.

The Kit Includes:

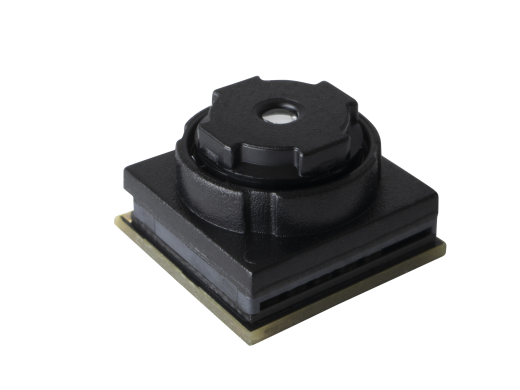

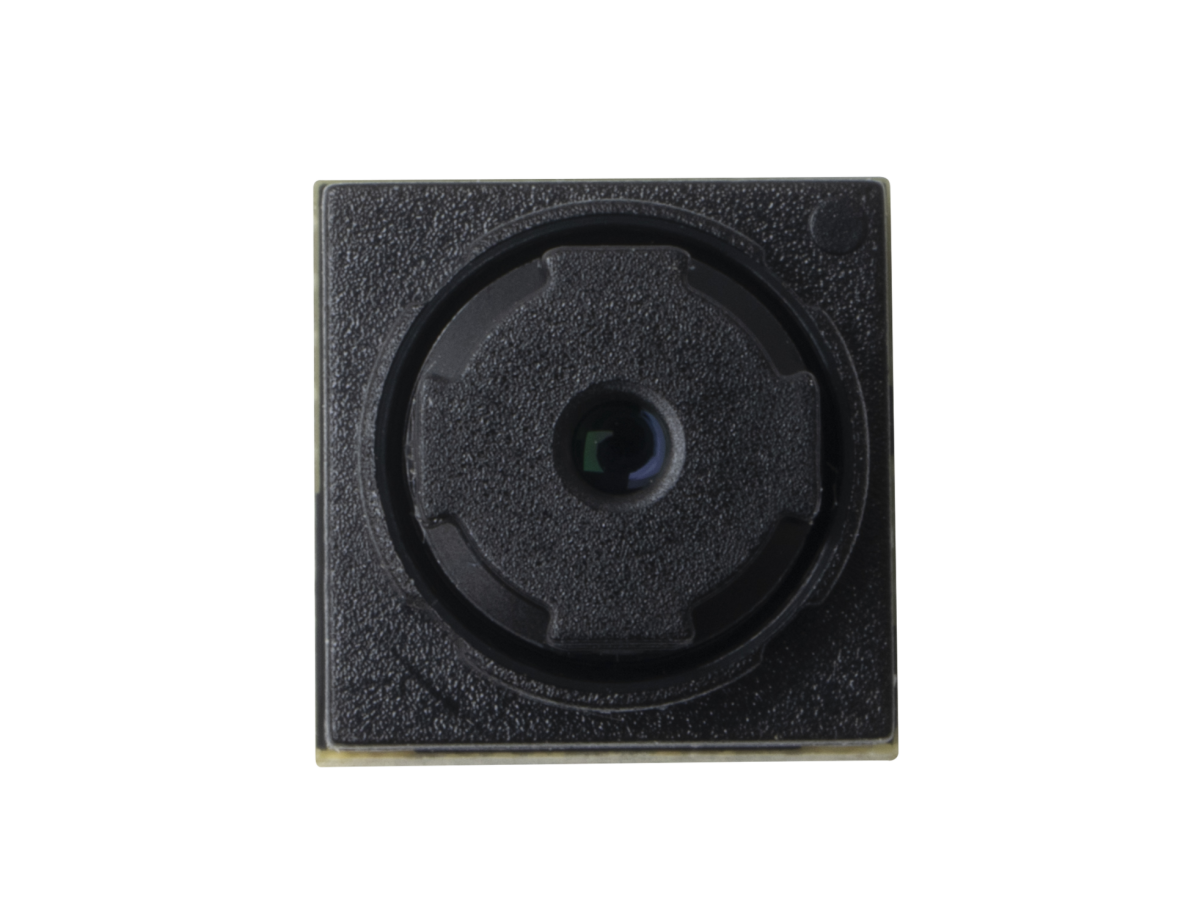

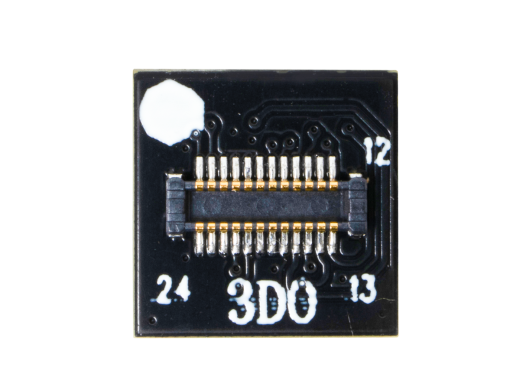

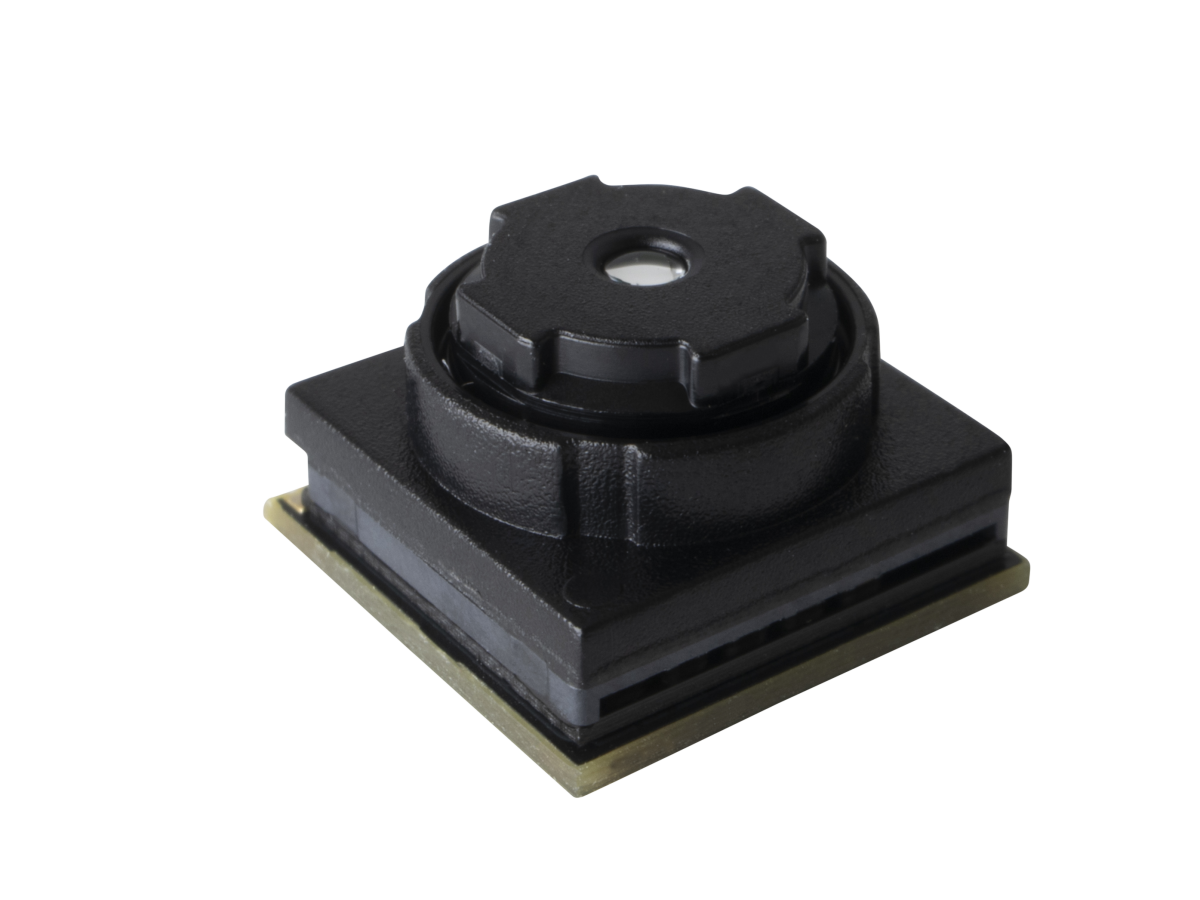

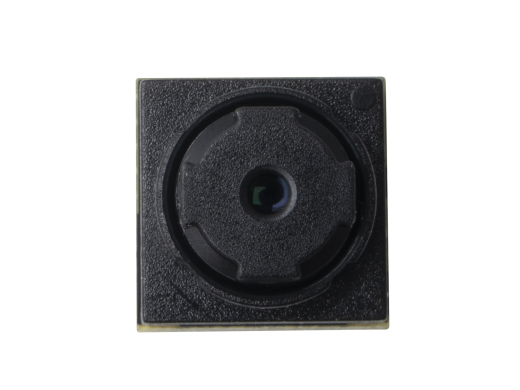

• 1x Sony IMX258 Nozzle Camera Sensor: 13 MP sensor with your selected lens option.

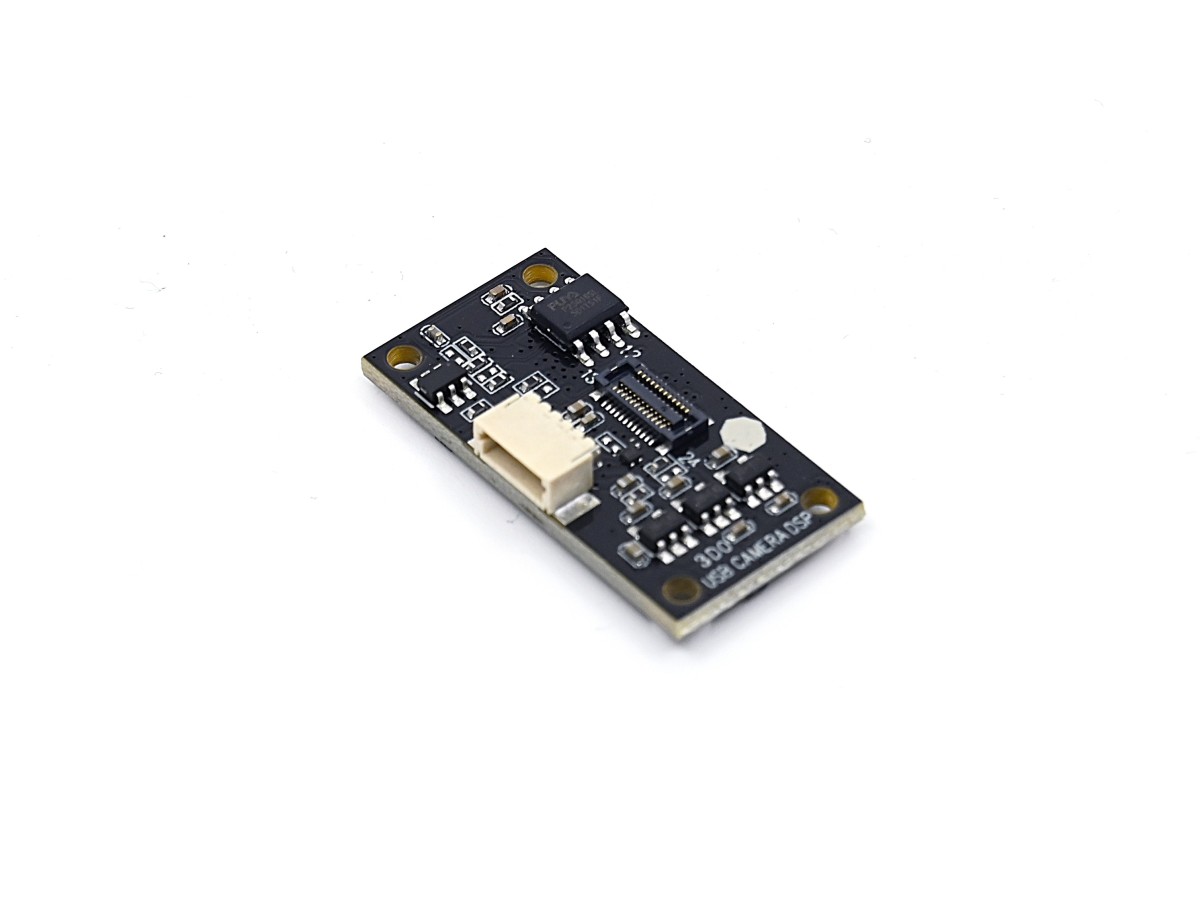

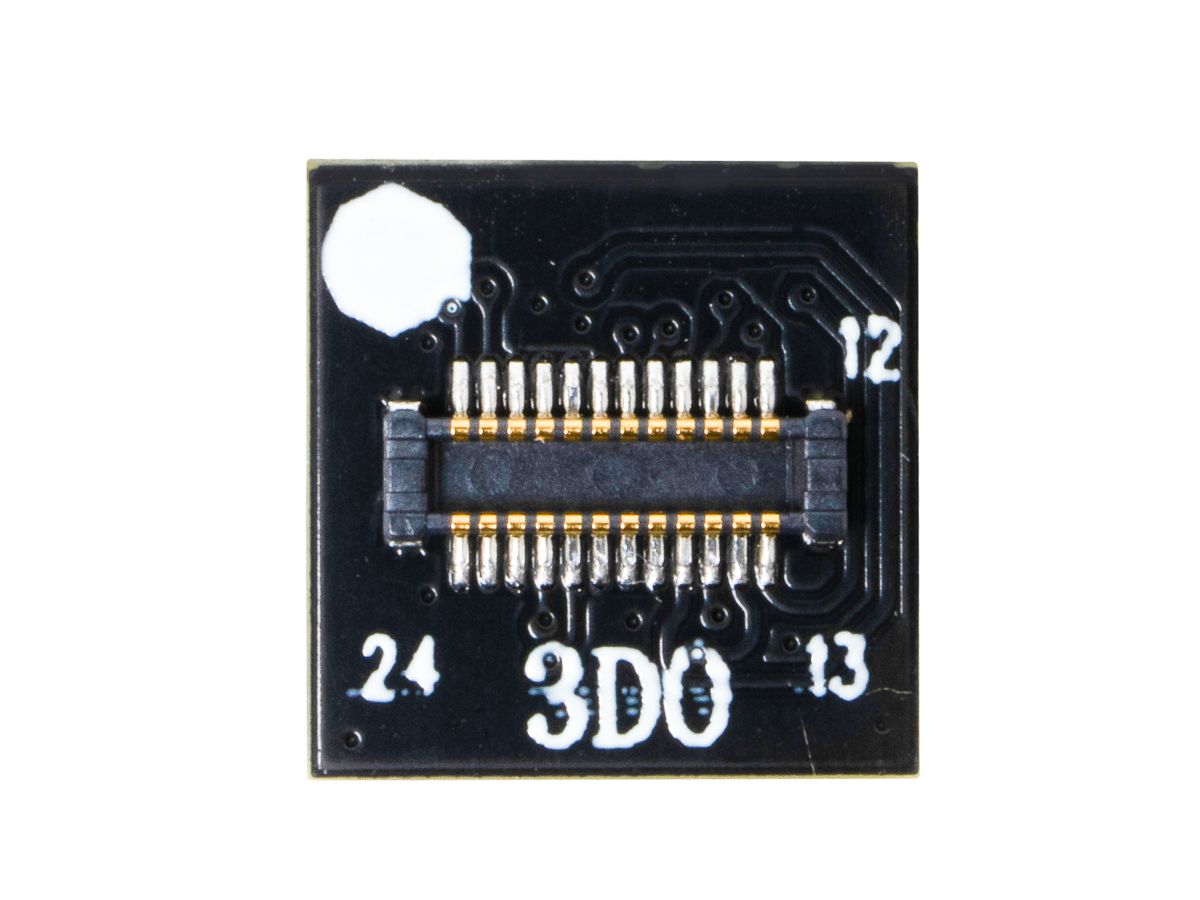

• 1x V2.5 DSP Board: Improved image processing with 3D denoise, LED control, and support for the new 90 fps modes.

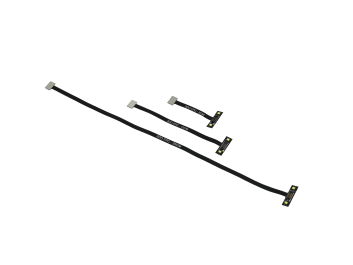

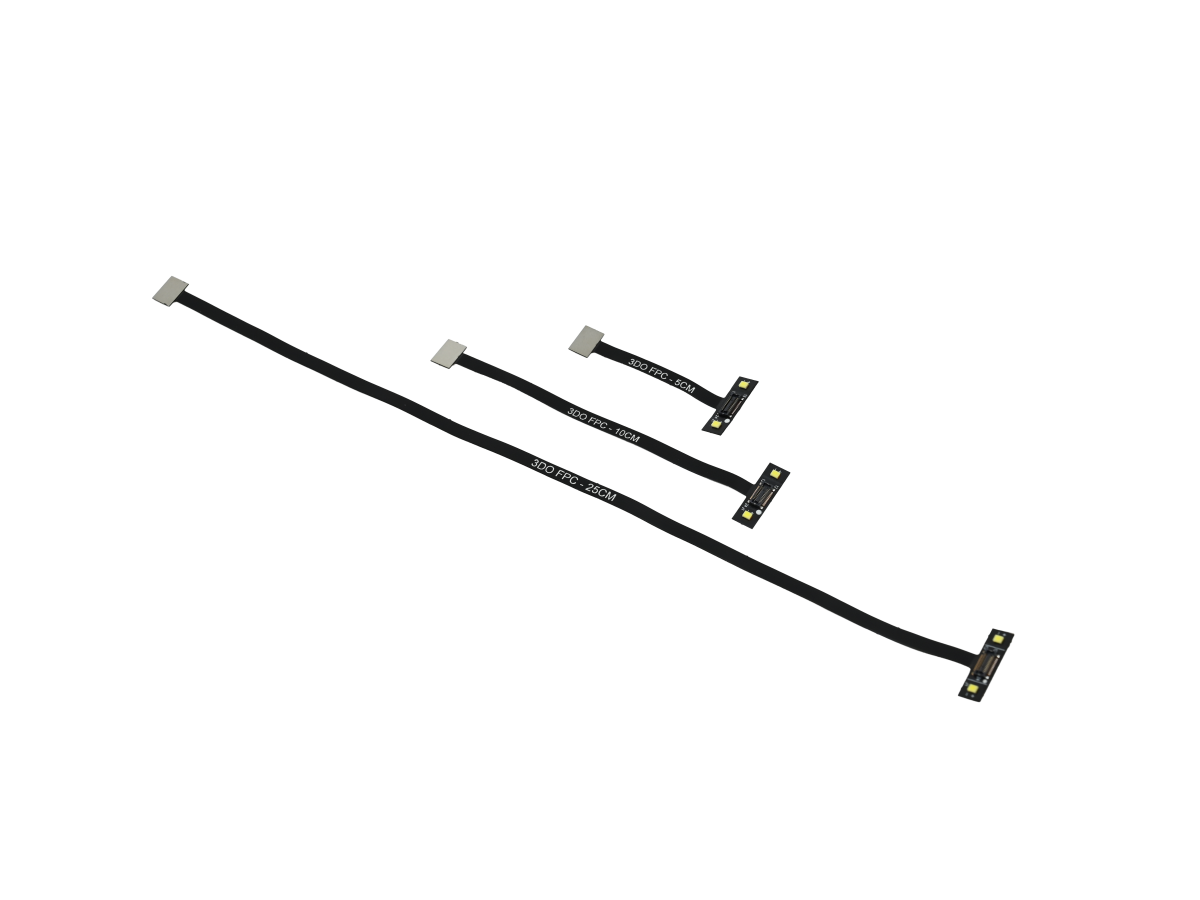

• 1x V2.5 FPC Cable with Removable High-CRI LEDs: Your selected cable length for flexible camera placement.

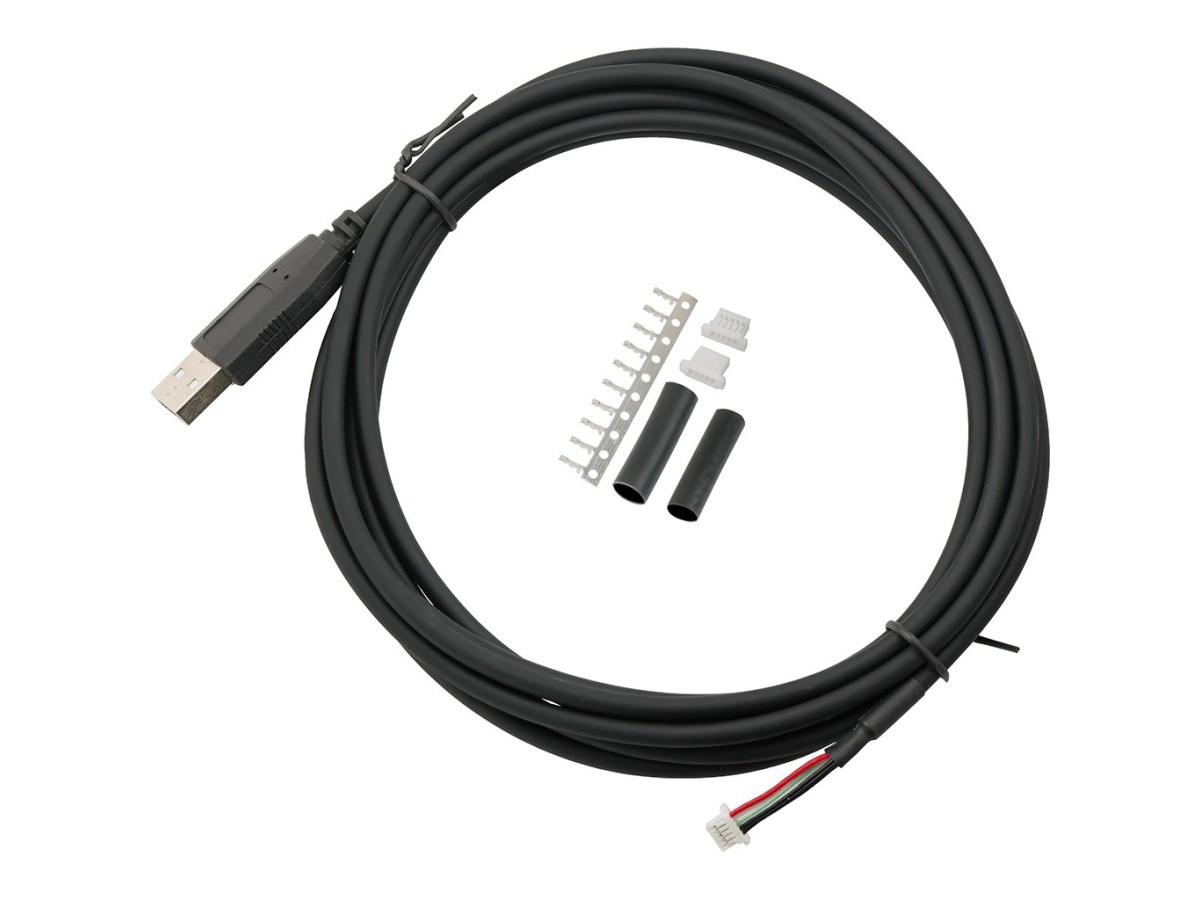

• 1x 3DO High Temperature USB Cable (1.5 meters): USB-A to 5P connection.

Works as a standard USB webcam with Linux, Windows, and macOS. Actual streaming performance depends on your host hardware and software configuration.

V2.5 hardware components are interchangeable with V2. The improved image processing and 90 fps modes require the V2.5 DSP board.

Visit our GitHub page for setup information, CAD files, and community mounts.
