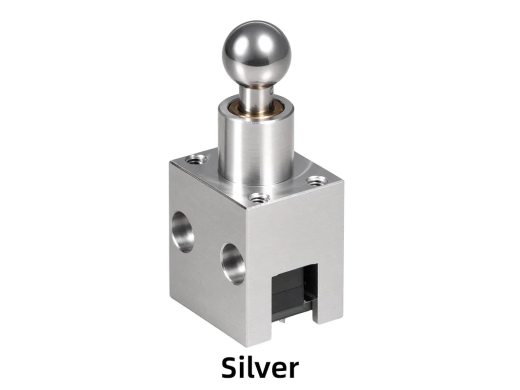

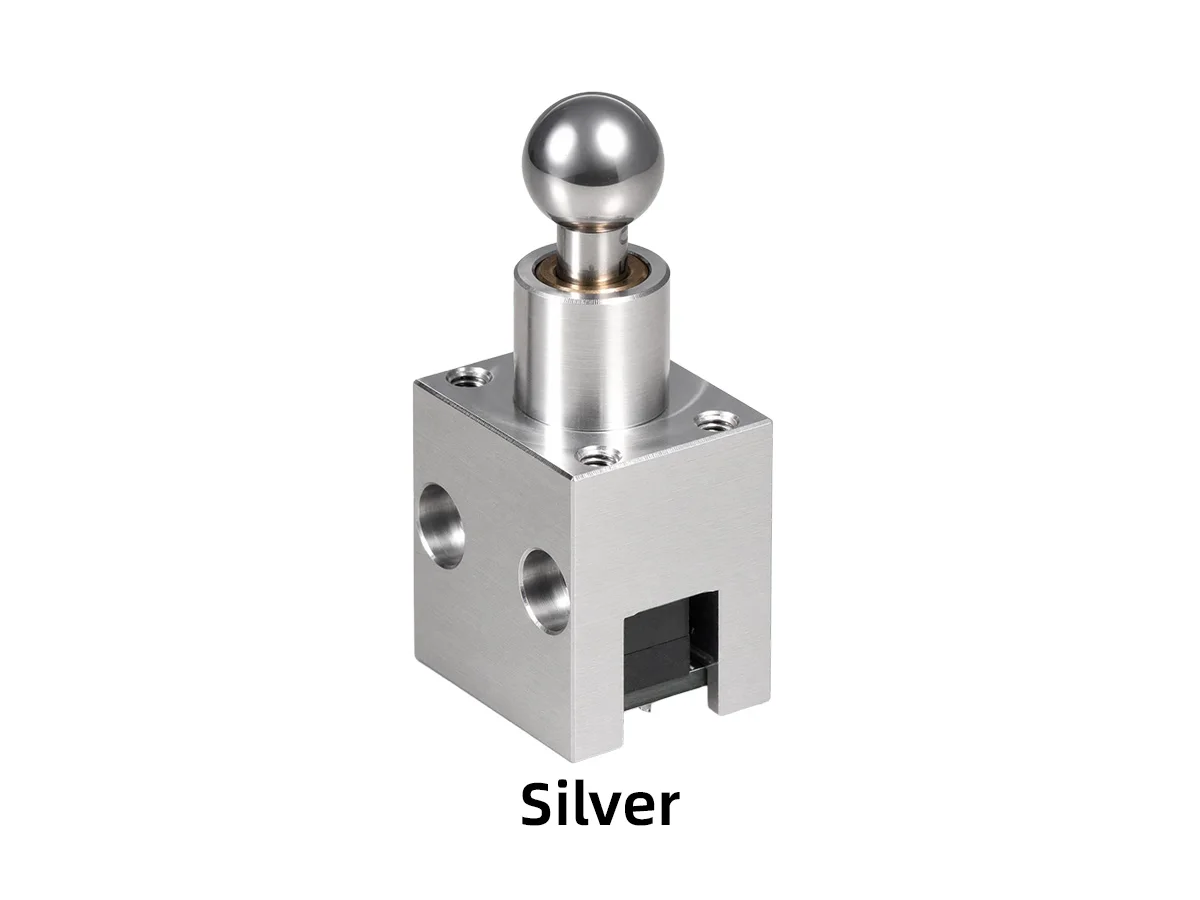

Mellow MultiHead Zero – XYZ Offset Probe – Silver

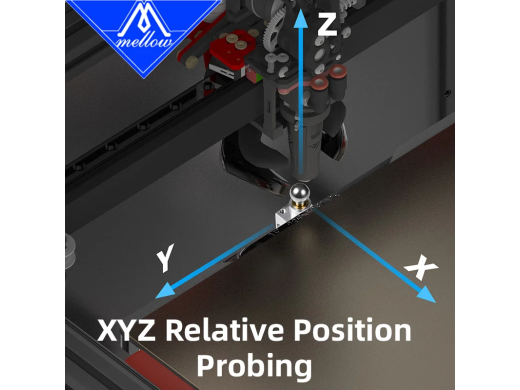

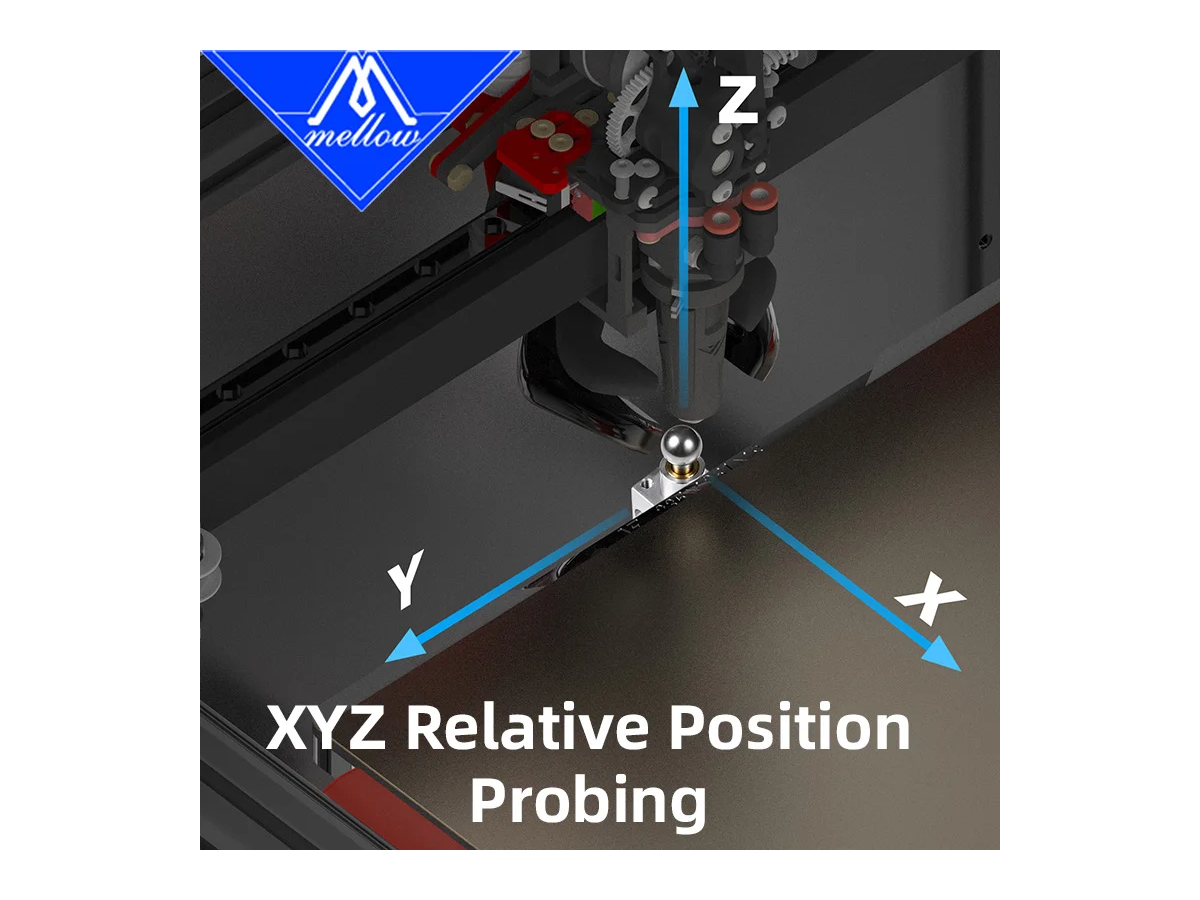

When a printer switches between nozzles, their positions need to align. MultiHead Zero provides a shared contact point that the printer's calibration routine can use to determine differences in X, Y and Z. This helps align toolheads for multi-colour or multi-material printing.

Construction and connection

• Manufacturer: Mellow
• Model: MultiHead Zero
• Colour: Silver

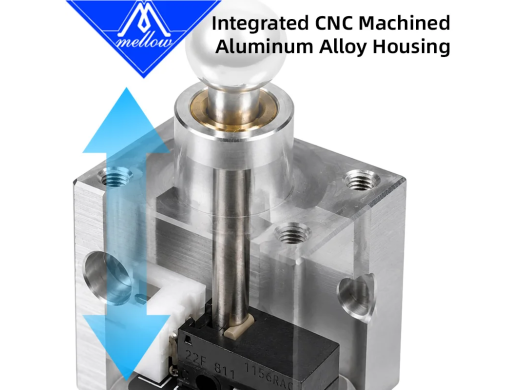

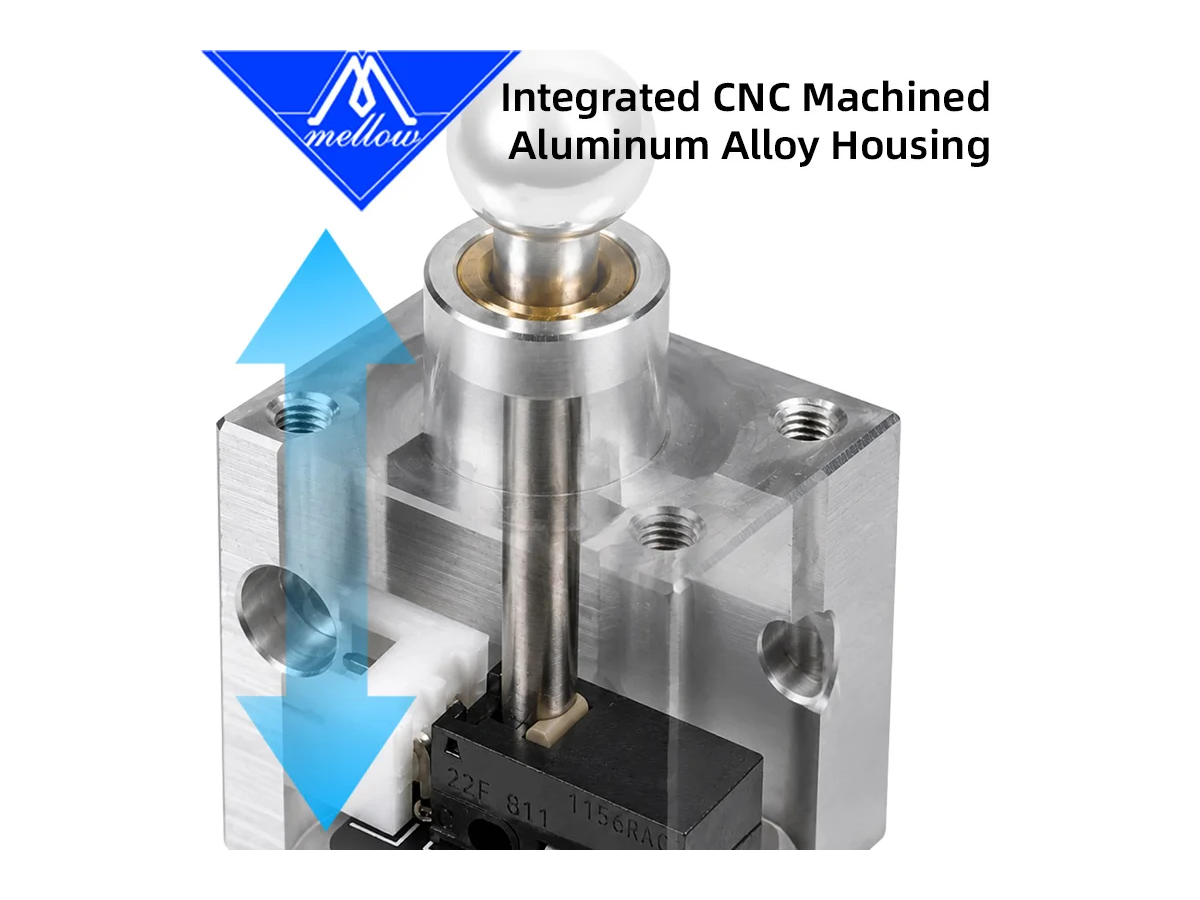

• CNC-machined aluminium housing with a guided shaft, bushing and spherical contact point
• Mechanical microswitch: normally closed (NC)
• Connector: XH2.54, 2-pin

Installation and configuration

Mount the probe securely in a position accessible to every nozzle being calibrated. Connect it to a suitable endstop/probe input and configure the printer's calibration routine. Mounting, wiring and firmware settings depend on the printer. Mellow's stated IDEX, INDX and StealthChanger compatibility requires a compatible setup.

Note: “Zero” is the product series name, not a measurement accuracy specification.

Package contents

• 1 × Mellow MultiHead Zero probe, silver

Documentation and project files

Mellow credits DraftShift Design's Sexball Probe and StealthChanger as the basis of the design. Consult the project documentation for calibration and relevant files, and follow Mellow's specifications for this hardware.

• Mellow – product information
• StealthChanger on GitHub
• StealthChanger – calibration guide
• DraftShift – Sexball Probe
